TURNTABLE CAR PLATFORM
Parameter:

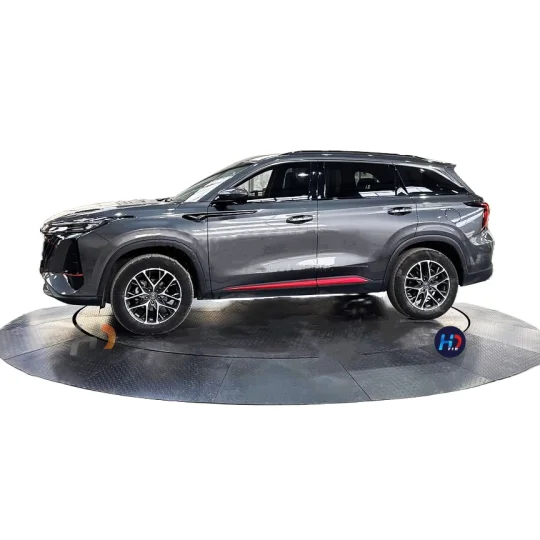

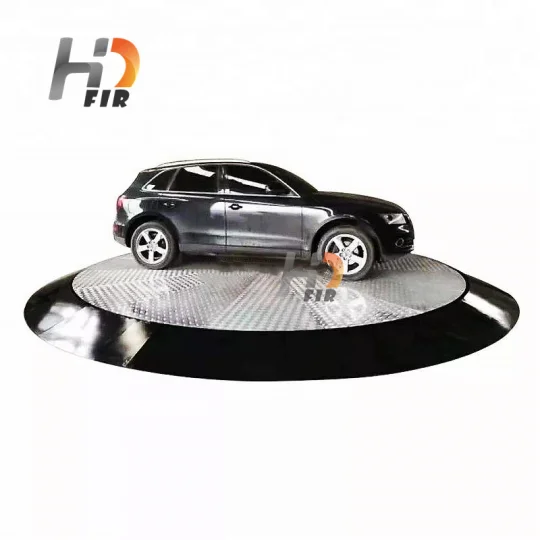

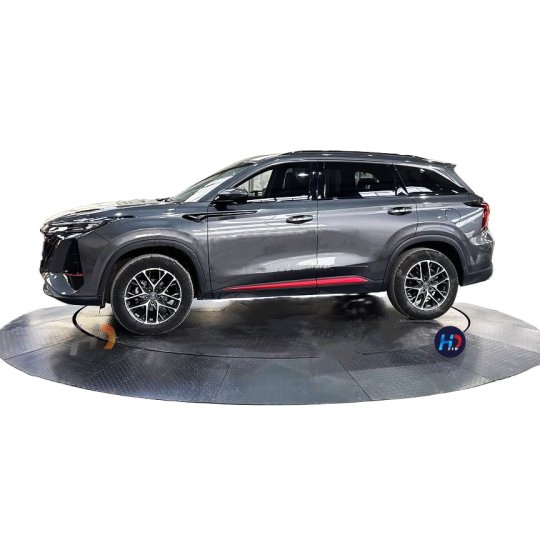

Turntable platform is a rotating platform for automobiles
which can achieve 360-degree omnidirectional rotation
and is extensively utilized in the exhibition of automobiles
and other products.We have two types for options：
installtion on the groud & installtion underground
Inquiry Now
- Product Details
- Specifications
- Inquiry Now
- Related Products
Product Details
Model NO: | TAB4000 | TAB4500 | TAB5000 | TAB5500 | |
Lifting Capacity | 4000kg | 4500kg | 5000kg | 5500 Kg | |
Turning speed | 1-2 RPM | ||||
Power supply | 220V/380V / 50HZ / 1ph/3Ph | ||||
Motor power | 600W | ||||
Operation | Push button and Remote control | ||||
Turning angle | 360°any direction | ||||
Diameter | 4000mm | 4500mm | 5000mm | 5500mm | |
Package size | 2080*1370*1440mm 2760*1570*1150mm | ||||
Finishing | Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated . | ||||
DRAWING:
Diameter：5000mm
PACKAGE:
Specifications
FEATURE:
The diameter and capacity can be customized according to your needs.

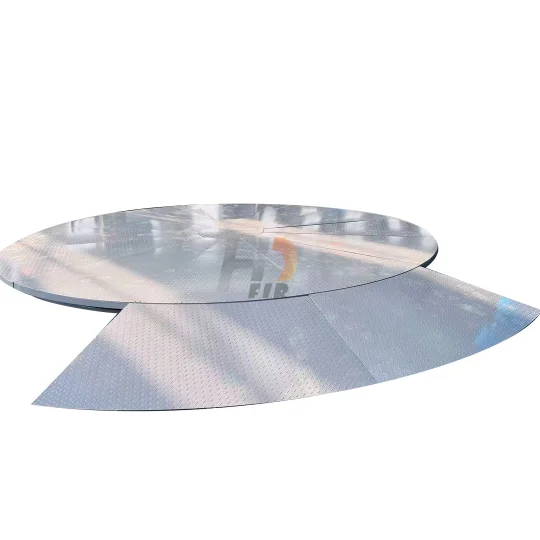

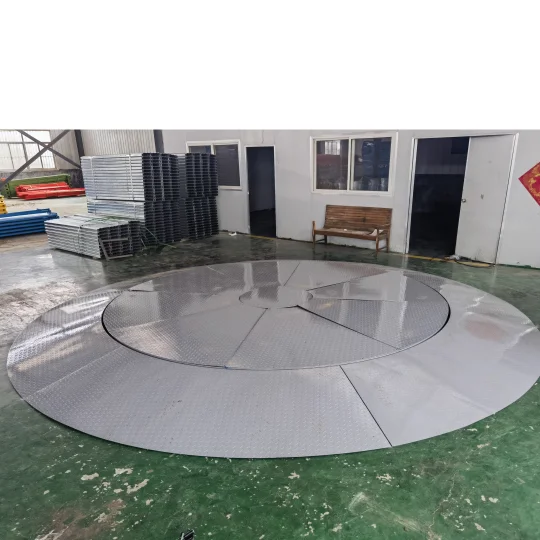

The platform material is diamond steel.

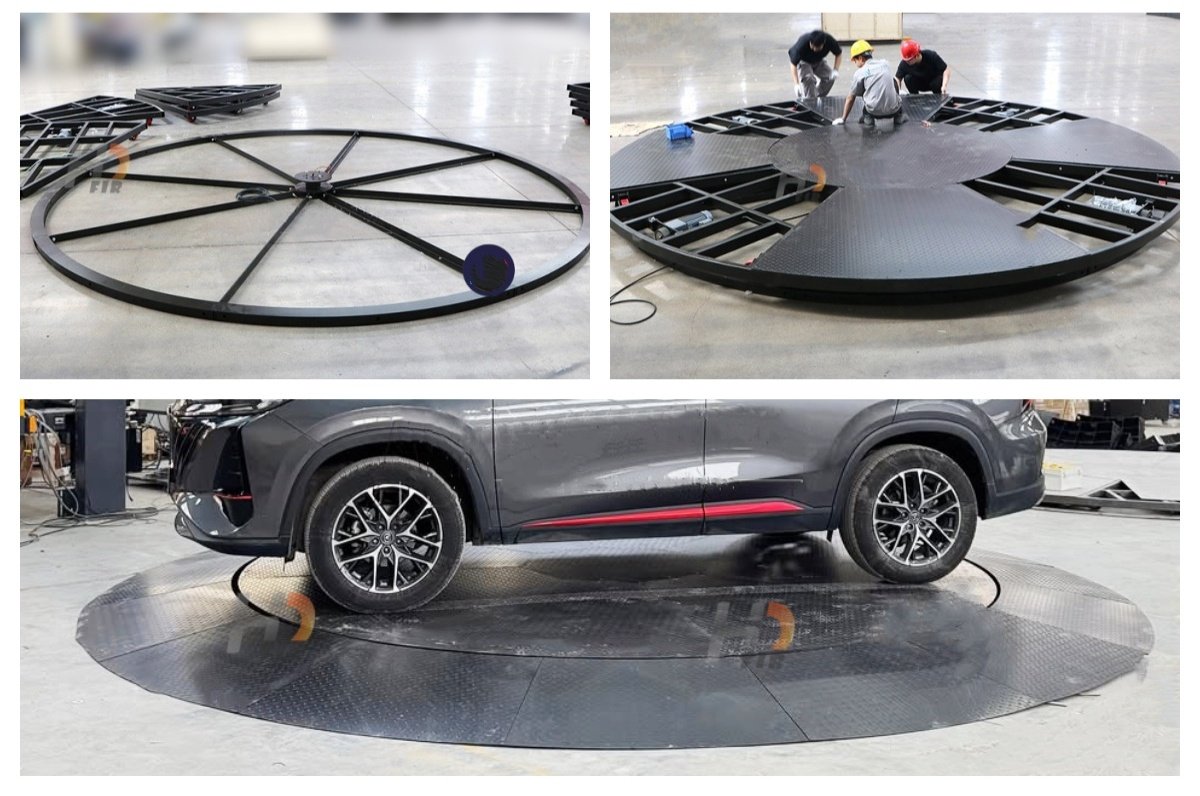

The installation can be in a pit or on ground.
Noise below 60 dB.
Easy installation.
The Concrete pit to be done according to local rules , minimum concrete
thickness 300mm and concrete grade is 3000 PSI .
FAQ:
Q1: What are your terms of payment?
A: T/T 50% as deposit, and 50% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q2. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 25 to 40 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We have customize service！
