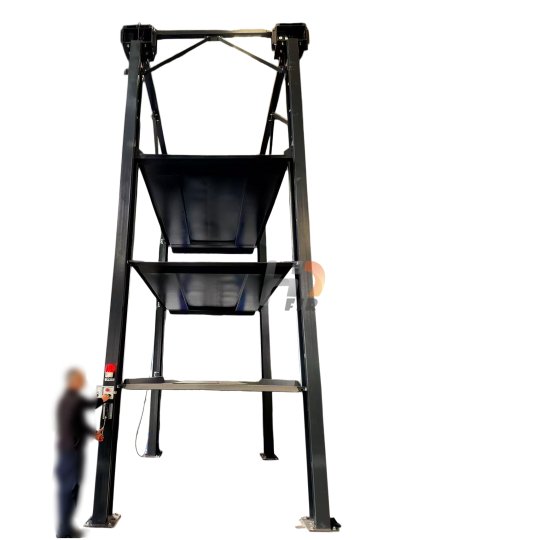

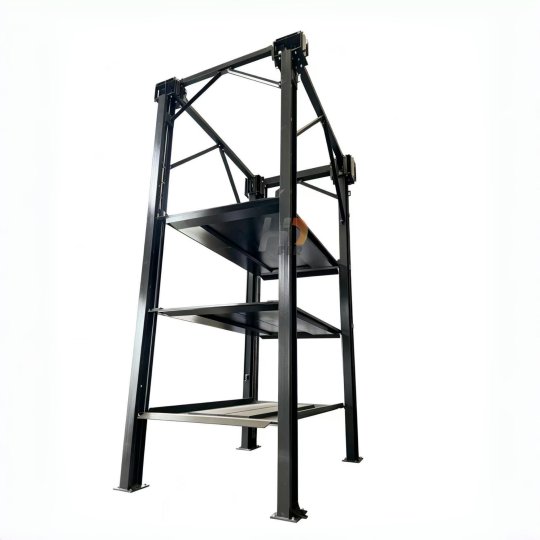

DOUBLE WIDE 4 POST CAR PARKING LIFT
STACKER 4 POST CAR PARK LIFT
Parameter:
This stacking parking lift is a real space-saver!
It stacks 3-4 parking spots in the footprint of just one. Powered by a
hydraulic system with wire rope balance, it runs smoothly and oil-leak free.
Equipped with full safety features including anti-fall locks, limit switches,
and emergency stop, it’s even suitable for low-ceiling locations, making
it ideal for auto factories and 4S stores.
Inquiry Now
- Product Details
- Specifications
- Inquiry Now
- Related Products
Product Details
| Model No. | SP606-3 | SP606-4 |
| Quantity parking | 3 | 4 |
| Dimension equipment | 4520×3131×6849 mm | 4520×3131×9049 mm |
| Car Size (L×W×H) | 5000 mm × 1850 mm × 1550 mm | 5000 mm × 1850 mm × 1550 mm |
| Lifting weight | 2000 kg (each platform) | 2000 kg (each platform) |
| Platform size | 4550×2100 mm | 4550×2100 mm |
| Mode of drive | Hydraulic & Motor | Hydraulic & Motor |
| Lifting speed | 5.6 m/min | 5.6 m/min |
| Warning device | Yes | Yes |
| Rise Time | 50 s | 50 s |
| Fall Time | 40 s | 40 s |
| Work Noise | ＜80dB (A) | ＜80dB (A) |
| Voltage | 380V, 50 HZ, 3Phase | 380V, 50 HZ, 3Phase |
| Motor Power | 7.5 KW | 7.5 KW |
| Maximum Working Pressure | 16 MPa | 16 MPa |
| Mode of drive | Hydraulic cylinder with heavy duty wire drive | Hydraulic cylinder with heavy duty wire drive |
| Mode of control | Electric control | Electric control |
| Mode of Operations | Manual Control buttons / Keys | Manual Control buttons / Keys |
| Safe device | Em’cy stop; limit switch; auto safety lock | Em’cy stop; limit switch; auto safety lock |
| Machine Net Weight | 3800 kgs | 4950 kgs |
| Surface treatment | Paint & Hot-galvanized | Paint & Hot-galvanized |
Specifications
Features:
1. Single hydraulic cylinder lifting for stable operation. The cylinder can be equipped with a relief valve and an explosion-proof valve to prevent accidents.
2. Passes 120% capacity dynamic load test and 150% static load test.
3. Wire rope balance and lifting, ensuring stable performance.
4. Unilateral unlocking design; one locking device can lock three lifting car spaces simultaneously.
5. Three running boards can be stacked to park vehicles sequentially.
6. The total equipment weight is 5T, with a single car space lifting capacity of 2T.
7. Parking space width is 2100 mm, and running board length is 4550 mm.
8. Storage-type parking, suitable for automobile manufacturers, 4S stores, and other similar scenarios.
9. Mold and tooling-fabricated equipment spare parts ensure high precision.
10. The equipment can be used as standalone units or conjoined to optimize space utilization
FAQ:
Q1: What are your terms of payment?
A: T/T 50% as deposit, and 50% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q2. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 25 to 40 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We have customize service！
